One Motor 2 WLC water level controller interconnected 2 Water tank

Share your inquiries now with community members Click Here
Previous Lesson Next Lesson
Sign Up and Get Free Certificate
Sign up Now
Lesson extensions

Lessons List | 84 Lesson
star delta power wiring connection 3 phase motor diagram
00:03:40

star delta power wiring connection 3 phase motor diagram
3 phase motor dol connection
00:03:18

3 phase motor dol connection
float switch wiring diagram for water pump
00:04:09

float switch wiring diagram for water pump
dol starter connection with indicator
00:06:55

dol starter connection with indicator
reverse forward dol starter power wiring
00:03:01

reverse forward dol starter power wiring
reverse forward star delta starter power wiring
00:04:14

reverse forward star delta starter power wiring
float switch connection auto manual single phase water pump
00:04:36

float switch connection auto manual single phase water pump
reverse forward dol starter control wiring
00:04:07

reverse forward dol starter control wiring
single phase motor connection with magnetic contactor wiring diagram
00:03:28

single phase motor connection with magnetic contactor wiring diagram
reverse forward dol starter indicator wiring
00:02:24

reverse forward dol starter indicator wiring
water pump control two way switch with magnetic contactor
00:03:21

water pump control two way switch with magnetic contactor
star delta starter control wiring diagram
00:08:08

star delta starter control wiring diagram
single phase motor control from two places
00:03:26

single phase motor control from two places
three phase motor run single phase line
00:03:40

three phase motor run single phase line
simply way how to connect calling bell wiring diagram
00:02:05

simply way how to connect calling bell wiring diagram
single phase motor wiring with indicator
00:04:04

single phase motor wiring with indicator
3 phase motor DOL starter control wiring with float switch diagram
00:05:47

3 phase motor DOL starter control wiring with float switch diagram
single phase motor water pump control magnetic contactor with indicator
00:04:08

single phase motor water pump control magnetic contactor with indicator
magnetic contactor interlocking diagram
00:02:42

magnetic contactor interlocking diagram
single phase submersible motor starter wiring mcb type
00:03:10

single phase submersible motor starter wiring mcb type
DOL starter wiring connection for single phase motor
00:04:53

DOL starter wiring connection for single phase motor
forward reverse star delta starter control wiring diagram
00:06:38

forward reverse star delta starter control wiring diagram
direct online starter electrical animation video
00:02:42

direct online starter electrical animation video
how to control 1 single phase motor in 2 energy meter
00:05:27

how to control 1 single phase motor in 2 energy meter
automatic water level controller
00:02:22

automatic water level controller
submersible water pump starter wiring connection diagram
00:04:25

submersible water pump starter wiring connection diagram
Main Distribution Board wiring MDB 3 phase wiring diagram
00:02:48

Main Distribution Board wiring MDB 3 phase wiring diagram
single phase motor control from 3 places
00:02:52

single phase motor control from 3 places
semi automatic star delta starter control wiring diagram without timer
00:03:31

semi automatic star delta starter control wiring diagram without timer
single phase motor timer connection
00:02:53

single phase motor timer connection
Motor connection auto manual with digital timer
00:03:08

Motor connection auto manual with digital timer
Auto transformer starter power wiring circuit diagram
00:02:58

Auto transformer starter power wiring circuit diagram
12V DC motor forward reverse connection diagram
00:01:47

12V DC motor forward reverse connection diagram
MPCB Motor Protection Circuit Breaker connection
00:02:09

MPCB Motor Protection Circuit Breaker connection
WLC water level controller DOL starter auto manual wiring diagram
00:02:44

WLC water level controller DOL starter auto manual wiring diagram

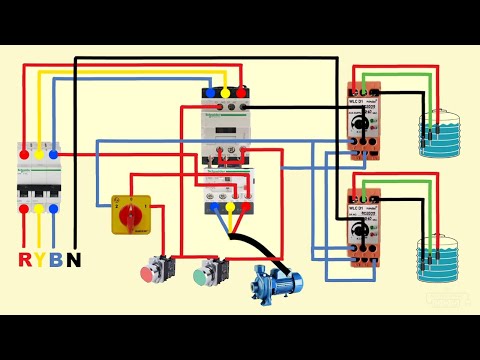

One Motor 2 WLC water level controller interconnected 2 Water tank
00:03:42

One Motor 2 WLC water level controller interconnected 2 Water tank
Auto switch connection with dol starter
00:03:09

Auto switch connection with dol starter
air compressor automatically ON OFF connection
00:02:14

air compressor automatically ON OFF connection
submersible motor float switch connection
00:02:26

submersible motor float switch connection
Earth leakage relay wiring diagram
00:02:13

Earth leakage relay wiring diagram
Show More Lessons

Comments

Our New Certified Courses Will Reach You in Our Telegram Channel
Join Our Telegram Channels to Get Best Free Courses

Join Now

We Appreciate Your Feedback

Excellent
1 Reviews
Good
0 Reviews
medium
0 Reviews
Acceptable
0 Reviews
Not Good
0 Reviews
5
1 Reviews
Tshepo Tsontswane

wow!brilliant stuff ,really amazing 2024-08-24

Show More Reviews


Related Courses in Engineering
Cabinetry Basics
5 Lessons

Cabinetry Basics

MFT and MFT related accessories
19 Lessons

MFT and MFT related accessories

hinges workshops
4 Lessons

hinges workshops

CNC Computer numerical control
11 Lessons

CNC Computer numerical control

Jointing Systems
9 Lessons

Jointing Systems

Cabinet tips
9 Lessons

Cabinet tips

Festool Domino
7 Lessons

Festool Domino

Bandsaws
9 Lessons

Bandsaws

doors building
6 Lessons

doors building

Communication Circuits Experiments
1 Lessons

Communication Circuits Experiments

Experiments with PlutoSDR
2 Lessons

Experiments with PlutoSDR

Electric Motors
6 Lessons

Electric Motors

Energy Engineering
7 Lessons

Energy Engineering

Digital Electronics
52 Lessons

Digital Electronics

Engineering Hydrology
74 Lessons

Engineering Hydrology

Engineering Mechanics
73 Lessons

Engineering Mechanics

Course Description

star delta starter control wiring course, in this course we will learn about star delta starter control wiring, a crucial technique used to reduce the inrush current during the starting of large motors. The course will begin with an introduction to the basic principles of star delta starters, explaining their purpose and how they function to protect electrical motors from high starting currents. You will learn about the components involved, including contactors, overload relays, timers, and how they are interconnected. We will cover detailed wiring diagrams, guiding you step-by-step through the process of connecting the star and delta circuits. You will learn how to wire the control circuit, including the setup of timers and the configuration of contactors, to ensure smooth transitioning from star to delta mode. Practical lessons will include hands-on exercises in designing and implementing star delta starter control circuits, troubleshooting common issues, and understanding the timing sequences essential for proper operation. Emphasis will be placed on safety practices, such as correct grounding, proper use of protective devices, and adherence to electrical codes. The course will also explore advanced topics like integrating star delta starters with PLCs for automated control, and using soft starters to further enhance motor protection.
